    MN 100 RF PON(RFoG) mini Optical Node

    Lootom MN100 RF PON Transceiver offer the operators competitive advantage and enormous flexibility over the traditional HFC architectures ...

    Current position:HOME > HFC

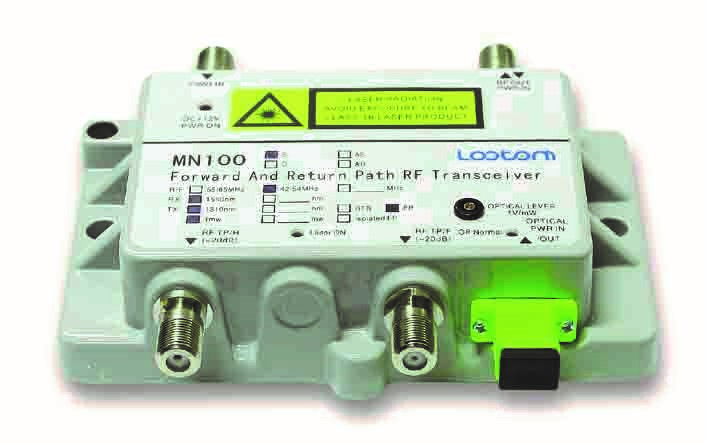

    MN 100 RF PON(RFoG) mini Optical Node

    Overview        Lootom MN100 RF PON Transceiver offer the operators competitive advantage and enormous flexibility over the traditional HFC architectures --- avail enough the existing RF and DOCSIS technology to deploy a fiber optic distribution network. Lootom MN100 operate over a standard Passive Optical Network(PON) ODN architectures using a standard HFC optical wavelength, connect to cable modems, televisions and set-top boxes through the existing coaxial cable, don’t need the neighboring HFC nodes and the annual testing and maintenance. Lootom MN100 allows PON, RFoG and mixed PON network to extend the bi-directional and interactive RF business through the passive optic distribution network, it could be used at the same optic cable which PON access to support the voice, video and data business. Lootom MN100 RF transceiver provides bi-directional services over extended RF frequencies (up to 1.1GHz) while being agnostic to head-end equipment, customer equipment, and compatible with today’s operating processes. Features         For FTTH
            Using the low noise pHEMT GaAs FET as the first RF amplify module, fit to low optic power input
            Support the universal HFC set-top box, cable modem and head-end equipment
            Transparent return path capability (protocol and modulation format are transparent)
            Optical AGC function ( reach the positive RF level)
            Reduce the convergence noise
            Local or remote power supply
            Die-casting aluminum housing, excellent heat dissipation performance
            It is compatible with DAVIC and DOCSIS Technical Specifications

    No.

    Item

    Unit

    Description

    Remark

    Physical

    1

    dimension

    mm

    31×128×78

    H×W×D

    Optic connector

    5

    optic connector

    SC/APC

    8

    input wavelength

    nm

    15251565

    9

    input power range

    dBm

    -80

    10

    Loss of signal alarm threshold

    dBm

    <-8

    11

    bandwidth

    MHz

    54/878621000

    12

    flatness

    dB

    ±0.75

    at the worst condition

    13

    impedance

    Ω

    75

    14

    RF output level

    dBmV

    24±2

    OMI=3.7, %, at -4dBm input power

    15

    RF return loss

    dB

    16

    at the worst condition

    16

    RF output test point

    -dB

    20±0.75

    17

    CNR

    dBc

    48

    -4dBm input power

    18

    CTB

    dBc

    70

    -4dBm input power

    19

    CSO

    dBc

    65

    -4dBm input power

    return path parameter

    20

    bandwidth

    MHz

    1042/65

    at the worst condition

    21

    Flatness

    ± dB

    0.75

    22

    impedance

    Ω

    75

    23

    RF return loss

    - dB

    16

    at the worst condition

    24

    RF input level

    dBmV

    20

    25

    RF input test point

    -dB

    20±0.75

    26

    laser

    FP

    27

    output power

    dBmW

    0

    standard

    28

    wavelength

    nm

    1310±50

    Assignable

    Laser working mode

    Normal mode or burst mode

    29

    laser operation

    bust mode

    30

    RF input test point

    -dB

    20±0.75

    31

    RF input dynamic range

    dBmV

    1540

    NPR dynamic range

    FP/DFB

    power and environment

    35

    operation temperature

    - 25+65

    36

    operation humidity

    5%~95

    non-condensation

    37

    power input voltage

    VDC

    +12 +24

    12VDC nominal

    38

    power consumption

    W

    4
    39

    surge protection

    KV

    6
