GEPON 1GE ONU GDONU100-1GE

GDONU100-1GE EPON ONU is designed for muti-business and for FTTH/O solution with bridge and router mode. It provides ...

current position：HOME > PON

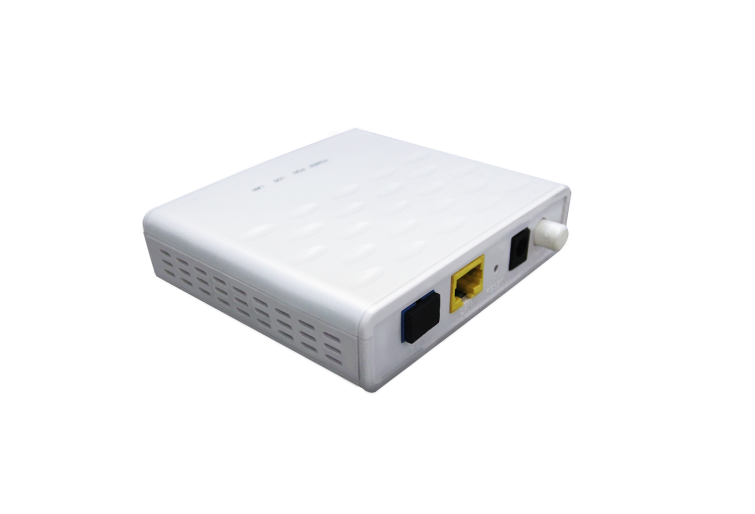

GEPON 1GE ONU GDONU100-1GE

Overview    GDONU100-1GE EPON ONU is designed for muti-business and for FTTH/O solution with bridge and router mode. It provides one 100/1000Mbps adaptive port, high-speed data and quality video services. It follows the 802.3ah IEEE international standards, with good interoperability and interoperability and can work with OLT of all the mainstream manufacturers. Features         ● Routing/bridge mode.
        ● It supports QoS function, realizing the reliable quality of service, and ensuring that the network service priority and service quality of different business.
        ● It supports China telecom standard defined OAM and extended OAM, including configuration, alarm, performance monitoring, fault isolation and safety management, etc., at the same time it supports the private OAM defined by Lootom, which cooperates with Lootom’s OLT to rich business control.
        ● It follows the international standards of IEEE802.3 ah, the communication industry standards of China (YD/T 1475-1475), meeting the latest requirement of the China telecom CTC2.1/3.0 , and can easily implement the interconnection with the mainstream standard OLT equipment manufacturers, mixing network and minimizing network construction cost. Technical Specifications

Item	GDONU100-1GE
User Networks interface	one fixed 100/1000M BASE-T self-adaptive RJ45 interface
PON interface	Up and down symmetrical transmission rate:1GBPS Network coverage radius : 20 km Optical interface type：SC/PC Optical receiver with high sensitivity : ≥-26dBm Luminous power：-1~4dBm
Dimension	102 mm(W) x 91 mm(D) x 28 mm(H) Box dimension: 235 mm(W) x 250 mm(D) x 70 mm(H) Weight: 120g
Dimension	Installation ：plug and play
Surroundings Parameter	Operating temperature：0℃～50℃
Surroundings Parameter	Storage temperature：-40℃～80℃
Power supply	DC12V/0.5A adapter type power supplying
Power consumption	<3.5W
Body case	Plastic case

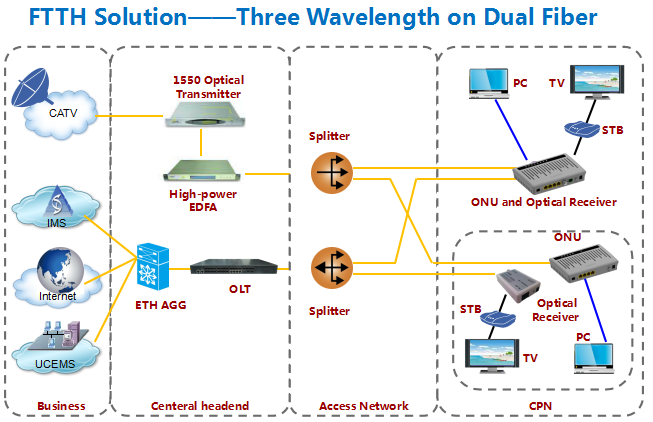

Network diagram
